| Model | ULTRAFLEX VPM |
|---|---|
| Cylinder Width | 20”, 24” & 42” |
| Repeat Length | 24” |
| Air Pressure Requirement | 2 Bar |
| Power Requirement | 110/220 Volts 50/60 Hz |
| Weight | 170 kg Approx. |
| Pneumatic System | SMC and Festo |
| Max Power Consumption (all operations) | <70 KW (operation dependent) |
| Machine Dimensions (AF Model) | 7790 mm Length x 1540 mm Width x 2275 mm Height |

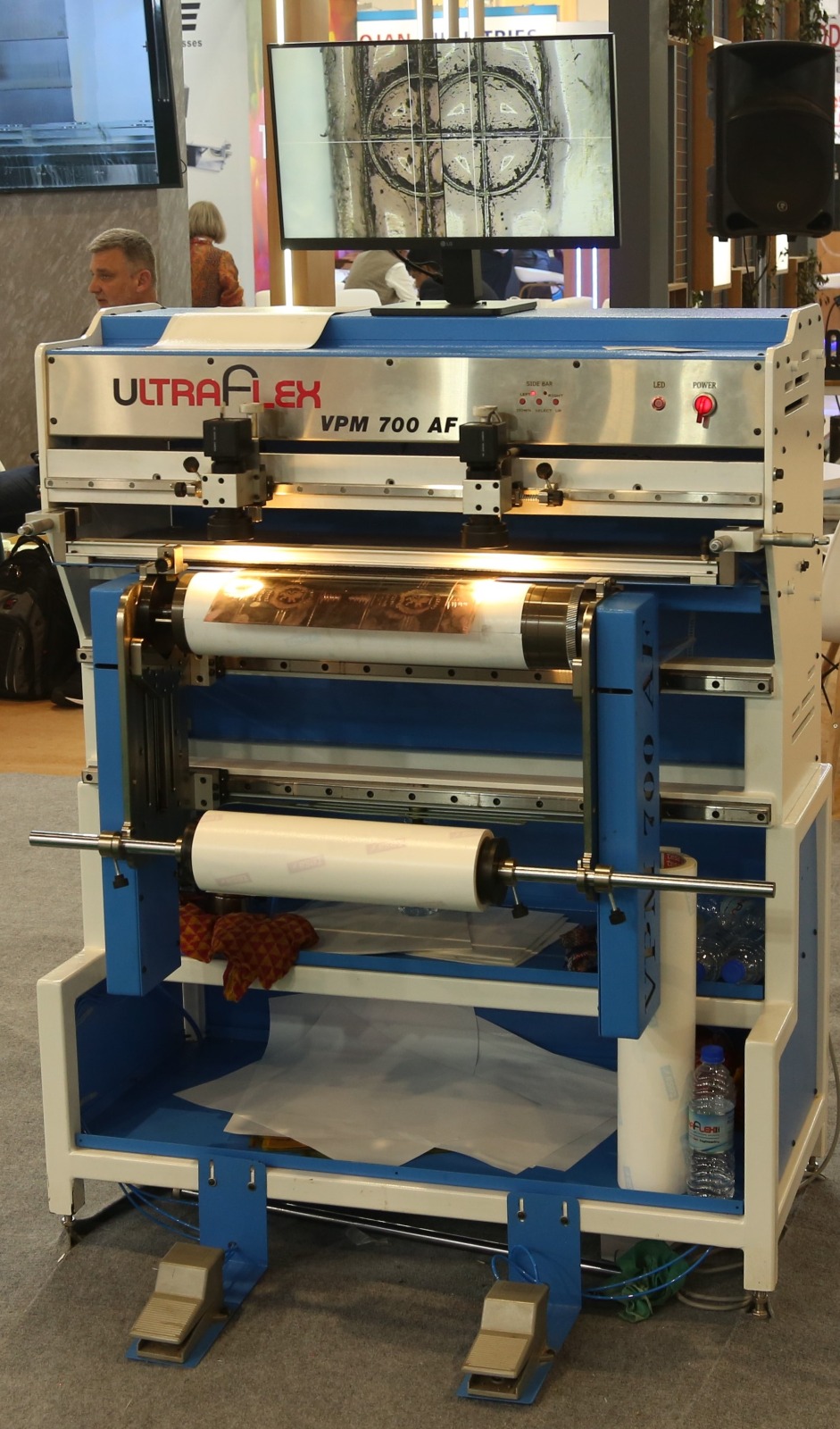

A state-of-the-art machine, the Video Plate Mounter accurately mounts flexographic printing plates on printing cylinders for an accurate fitting. The high quality and speed of the device, which runs on the latest video imaging technology, guarantee maximum precision, low error rates, and quick set-up times. Some very essential tools in modern flexographic print production, increasing productivity and print quality.

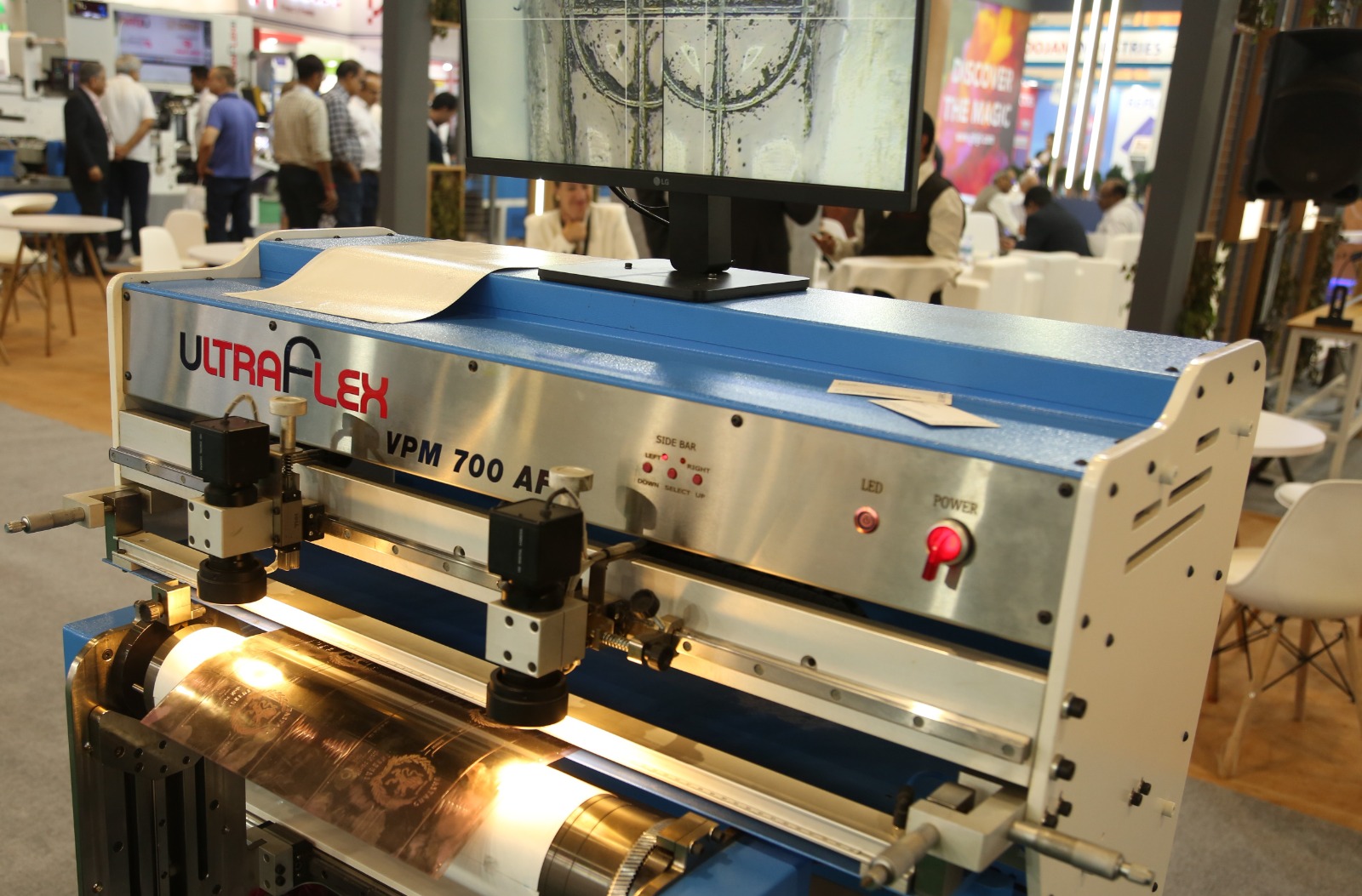

Integrated cameras provide clear, magnified views of the plate and cylinder alignment points, ensuring unmatched precision.
Real-time video feeds displayed on HD monitors streamline the mounting process by enabling operators to align plates effortlessly.
Durable materials like stainless steel and aluminum ensure longevity and resistance to wear and tear in industrial settings.
Allows compatibility with various plate sizes and cylinder dimensions, making it versatile for different applications.
Simplified controls and intuitive software enable operators of all experience levels to use the machine efficiently.
| Specifications | Details |
|---|---|
| Camera Resolution | 1080p Full HD |
| Monitor Size | 21” LED Display |
| Cylinder Diameter Range | 50 mm to 800 mm |
| Plate Thickness Compatibility | 0.5 mm to 2.0 mm |
| Mounting Accuracy | ±0.01 mm |
| Machine Weight | 1500-3000 kg |
| Power Supply | 220V, 50/60 Hz |
| Weight | 120kg |
| Material | Stainless Steel, Anodized Aluminum |
The integration of video technology ensures pinpoint accuracy in plate alignment, resulting in improved print quality.
Automating the plate mounting process significantly reduces setup times, boosting overall productivity.
Minimized errors and material waste translate into lower operational costs over time.
Compatible with various plate and cylinder sizes, it serves multiple printing requirements in one machine.
Ergonomically designed systems and automated features reduce the risk of operator fatigue and injuries.
| Feature | Traditional Plate Mounter | Traditional Plate Mounter |
|---|---|---|
| Alignment Accuracy | Moderate | High |
| Setup Time | Long | Short |
| Operator Skill Requirement | High | Moderate |
| Error Rate | Higher | Minimal |
| Maintenance | Frequent | Low |
Smart video plate mounters with IoT capabilities are emerging, enabling remote monitoring and predictive maintenance.
AI technology is being incorporated to further automate the plate mounting process, reducing human intervention.
Future models are likely to support an even broader range of plate sizes and materials, increasing versatility.
Manufacturers are focusing on eco-friendly designs that minimize energy consumption and material waste.
Video Plate Mounters are revolutionizing the printing industry with their precision, efficiency, and ease of use. At U.V Graphics Technology, we are committed to delivering state-of-the-art solutions that enhance productivity and print quality. Whether you are in packaging, labeling, or commercial printing, our Video Plate Mounters are designed to meet your needs and exceed expectations. Invest in innovation. Choose U.V Graphics Technology for your printing solutions and stay ahead in an ever-evolving industry.
Yes, U.V Graphic Technology Private Limited specializes in offering customized solutions to meet specific client requirements. Whether it's machine size, speed, or additional features, we tailor our products to suit your needs.
Yes, we offer tailored solutions to meet your specific production needs. From machine size to additional features, our team can design and manufacture machines as per your requirements.
Our flexographic printing machines can print on materials such as:
• Paper
• Plastic films (PE, PP, PET)
• Aluminum foil
• Laminates
• Corrugated sheets
Yes, our machines are designed to handle water-based, UV-curable, and solvent-free inks, making them suitable for eco-conscious businesses.
