General Specifications:

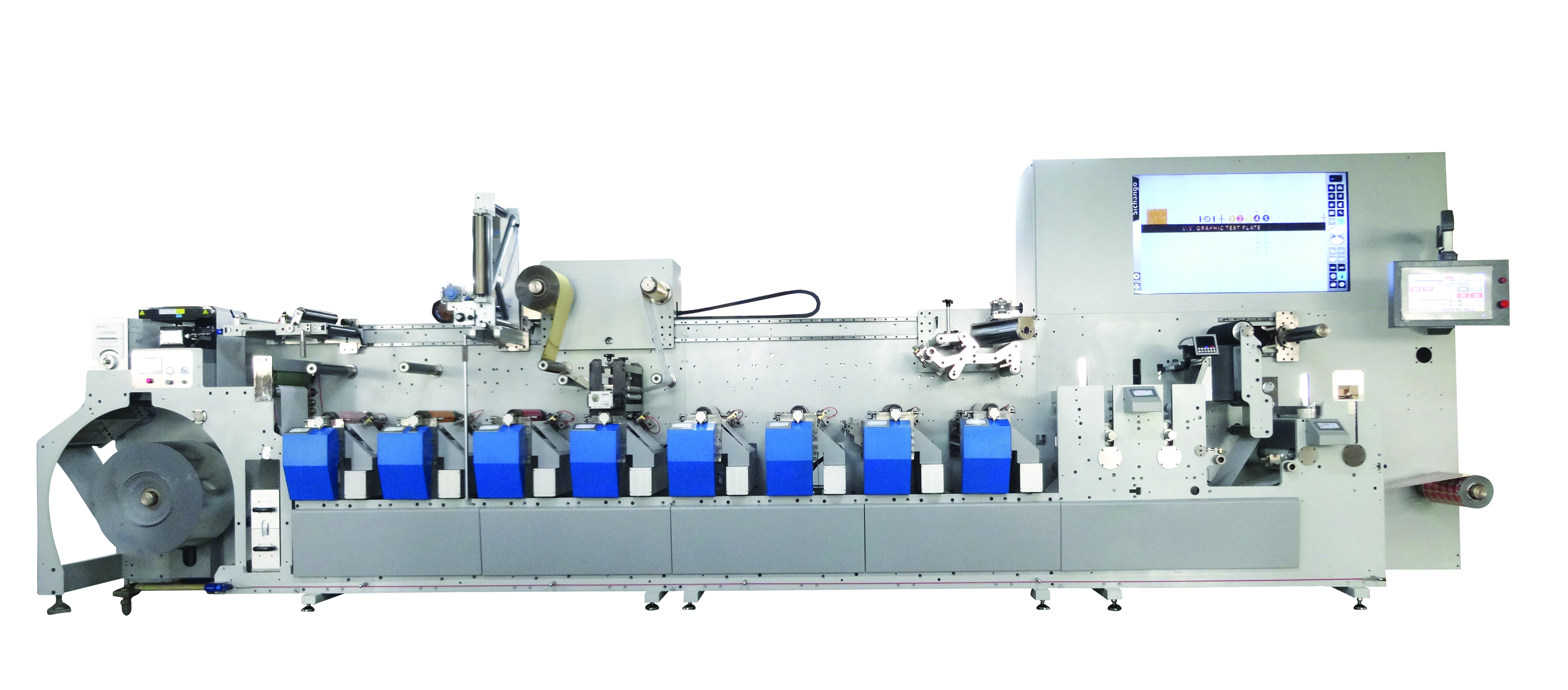

Model ULTRAFLEX UFO 370|450|530|670
Web Width 370-670 mm
Max. Print Width 365-665 mm
Min Printing Width 50 mm
Printing Repeat 177.8 mm to 609.6 mm Z 56 to Z 192
Substrates 12μ to 400μ Film, Paper and Cardboard
Gearing Helical 1/8” Zeta = 3.175mm
Die Cutting Repeat Z 84 to Z 192 (266.7 to 609.6)
Max. Unwind Diameter 1050 mm
Max. Main Rewind Diameter 1050mm (Single Rewind) 800mm Twin Rewind
Maximum Reel Weight 420 Kg
Max. Mechanical Speed 150 M/min*
Drive Full Servo, Bosch Rexroth Germany
Control Panel 10” HMI with full Human Interface
Pneumatic System SMC and Festo
Air Pressure Requirement 8 BAR / 100 PSI 20 CFM
Power Requirement 415 Volts 3 Phase 50 Hz / 3 wire input
Max Power Consumption (all operations) <70 KW (operation dependent)
Machine Dimensions (Foot Print) (8color) 7790 mm Length x 1540 Width x 2275 Height
Machine Foot Print Does not include working space or provision of service trolleys
Cutting Speed Up to 300 Labels per minute
Material Thickness 20 microns to 500 microns
Cutting Tolerance ±0.1 mm
Power Consumption 3KW
Dimensions 1200 mm x 800 mm x 1500 mm ±0.01 mm
Weight 500 kg
Compatible Software Compatible Software Windows and Mac-based design tools
Flexographic Printing Machines by U.V Graphic Technology

U.V Graphics Technology is a trusted name in the printing industry. It provides modern Flexographic Printing Machines for varied printing needs. With the combination of cutting-edge technology, precision-engineered machines, and commitment to excellence in every aspect, we offer solutions that redefine the standards of printing. Whether it is packaging, labeling, or any other printing sector, our machines provide performance that knows no comparison.

Flexo Printing Machines

Flexo Printing Machines

Why Choose Flexographic Printing Machines?

Flexographic printing is actually a versatile and efficient truely print procedure that can be applied to manufacture excellent quality prints on any substrates including paper, plastics, foils, and cardboard. The most important benefits are as follows:

  1. Versatile: Suitable for multiple substrates
  2. High-Speed Printing: Increased production cycles
  3. Cost-Effective: Less time and material wasted in setup.
  4. Eco-Friendly Possibilities: Water-based inks and sustainable practices.
With U.V. Graphic Technology Flexographic Printing Machines, gain the benefits for improved production capability.

Eco-Friendly Possibilities: Water-based inks and sustainable practices.

  1. Adept Printing Quality: Get your lively high-resolution disc prints.
  2. Avant-garde Design: The most modern technology goes into making our machines truly durable consistent performance.
  3. User-Friendly Operation: The interfaces are simplified, and some of the work is done automatically to make it easy to use and care for each machine.
  4. Energy Efficiency: Low wattage but high performance.
  5. High Speed Production: Increased speed enhanced productivity.
  6. Environmentally Sustainable: Compatible with green inks and recyclable materials.

Flexo Printing Machines

Flexo Printing Machines

Applications of Flexographic Printing Machines

  1. Manufacturing under the flexibility of the Flexographic Printing Plants could include, but not limited to:
  2. Packaging: Flexible and rigid food, drinks, and consumer goods packaging.
  3. Labels: Good-quality labels mean branding and product identification.
  4. Corrugated Boxes: Export and retail boxes, enhanced with strong and attractive printing.
  5. Tissue Products: Attractive and branded prints on tissues and napkins.

Benefits of Partnering with U.V Graphic Technology

  1. Total Support: We provide complete support from installation to maintenance.
  2. Tailored Solutions: Our team collaborates closely with clients to offer specific solutions, which are customized for them.
  3. Training and Resources: Training programs are available so that teams can maximize machine efficiency.
  4. Global Reach: We serve clients all over the world through the excellent distribution networks.
  5. Innovation: Continuous investments in R&D ensure that our machines remain at the forefront of technology.

Flexo Printing Machines

FAQs About Flexographic Printing Machines

Yes, U.V Graphic Technology Private Limited specializes in offering customized solutions to meet specific client requirements. Whether it's machine size, speed, or additional features, we tailor our products to suit your needs.

Yes, we offer tailored solutions to meet your specific production needs. From machine size to additional features, our team can design and manufacture machines as per your requirements.

Our flexographic printing machines can print on materials such as:
• Paper
• Plastic films (PE, PP, PET)
• Aluminum foil
• Laminates
• Corrugated sheets

Yes, our machines are designed to handle water-based, UV-curable, and solvent-free inks, making them suitable for eco-conscious businesses.
