| Max. Web Width | 450 mm |
|---|---|
| Max. Slitting Width | 440 mm |
| Min. Slitting Width | 25 mm (will require Differential Shaft) |
| Max. Speed | 400 m/min |
| Tension System | Servo Automatic (Bosch Rexroth) |
| Max. Unwinding Dia. | 750 mm |
| Max. Rewinding Dia. | Turret 300 mm |
| Slitting System | Shear Knife (Optional razor blade) |
| Slitting Knives Quantity | 6 pcs |
| Rewinding Shaft | 2 on Turret and one on Frame (total 3) |
| Web Guide System | Electronic Edge Sensing Web Guide |
| Machine Drive | Full Servo and PLC from Bosch Rexroth |
| Control System | Human Machine Interface with PLC |
| Dimensions (L x W x H) | 2200 mm x 1350 mm x 1350 mm |
| Net Weight | 1300 kg |
| Gross Weight | 1550 kg |
| Voltage | 380 – 415 Volts 3 Phase 50/60 Hz |

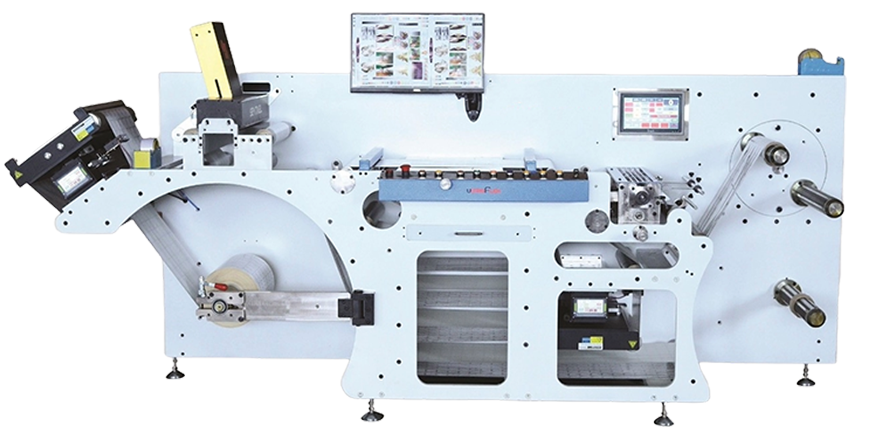

It is an industrial machine for slitting rewinding and is used to cut large rolls of materials-paper, film, foil, and other flexible substrates-into smaller rolls of precise widths. It rewinds slit materials back into compact, manageable rolls for further processing or end use; such a machine is essential in the packaging, printing, and converting industries, all needing accurate measurements of material-dimensions for efficient and quality control.
| Feature | Manual Machines | Automated Machines |
|---|---|---|
| Speed | Slow | High |
| Precision | Moderate | High |
| Labor Dependency | High | Low |
| Cost | Lower initial investment | Higher ROI over time |
| Feature | Rotary Die Cutting | Flatbed Die Cutting |
|---|---|---|
| Speed | Faster for high-volume tasks | Better for detailed, low-volume tasks |
| Material Usage | Efficient | Higher material waste |
Label Die Cutting Machines are increasingly adopting IoT-enabled features for real-time monitoring and data analytics.
Expect more machines designed to handle biodegradable and recyclable materials efficiently.
Emerging technologies like laser die cutting offer even greater precision and flexibility for complex designs.
Manufacturers are focusing on creating compact machines suitable for small-scale operations and limited spaces.
A Label Die Cutting Machine is a vital investment for businesses aiming to streamline their label production processes. With its precision, speed, and versatility, it meets the demands of diverse industries while offering long-term cost efficiency. As technology advances, these machines are set to become even more intelligent, sustainable, and adaptable, making them indispensable in modern manufacturing setups.
Yes, U.V Graphic Technology Private Limited specializes in offering customized solutions to meet specific client requirements. Whether it's machine size, speed, or additional features, we tailor our products to suit your needs.
Yes, we offer tailored solutions to meet your specific production needs. From machine size to additional features, our team can design and manufacture machines as per your requirements.
Our flexographic printing machines can print on materials such as:
• Paper
• Plastic films (PE, PP, PET)
• Aluminum foil
• Laminates
• Corrugated sheets
Yes, our machines are designed to handle water-based, UV-curable, and solvent-free inks, making them suitable for eco-conscious businesses.
